20W 30W Desktop Co2 Fiber Laser Marking Machine

Brand Name : HM

Model Number : 20W

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : 1200

Payment Terms : T/T, Western Union

Delivery Time : 7 work days

Packaging Details : woodencase

Graphic format supported : AI,PLT,BMP,DWG,DXF

Cooling mode : Air Cooling

Condition : New

Control software : EZCAD

Warranty : 2 Years

Marking speed : 0-7000mm/s

Laser power : 20W 30w 50w(Optional)

Laser wavelength : 1064nm

Laser source : Raycus

Product name : 30W laser marking machine,20 Fiber Laser marking Machine for metal,Fiber Optical Laser Marking Machine

Contact Now

Product Description

Model: Fiber Laser Marking Machine.

Applicable materials:Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials, such as PVC,PC, black acrylic.

Applicable industry:It is widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.

Portable Type Fiber Laser Marking Machine with RAYCUS/MAX/JPT Source.

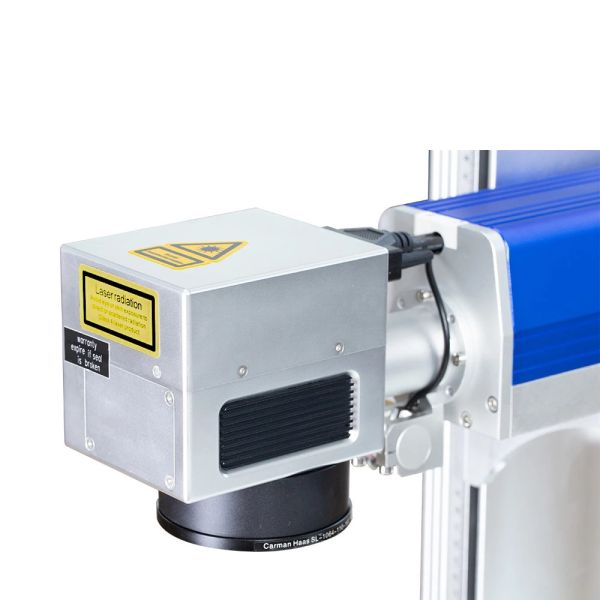

 Galvanometer Mirror
Scanning galvanometer, full digital signal, super anti-interference ability.High precision, short delay, fast speed, small
 temperature drift, especially suitable for all kinds of high precision, high speed marking requirements.The fiber wavelength is 1064nm.

02
High Quality Field Lens
Famous brand field lens Wavelength Higher energy conversion rate,fast speed and long life.75MM*75MM ,100*100MM,150*150MM ,200*200MM ,300*300MM ,Above working area optical Same power for example 20W if working area smaller,the marking depth by one time is bigger
03
JCZ Main board

Meanwell power supply
configured with high precision



04
EZCAD Control Software
Control software, beautiful interface, powerful function, detailed parameters, simple operation, can describe any pattern, text,
 bar code, two dimensional code processing.
05
Optical double red light

Configure with double light ;easy to find the right focus length,but needs to add some cost
06
Lifting handle
High quality and stable Adjust the up and down for different height material marking
07
Control button
Humanized control system, easy to operate, safe and convenient, dust proof design
09
Working table
Aluminum working table. Flat and smooth, compact structure, flexible processing direction adjustable control.

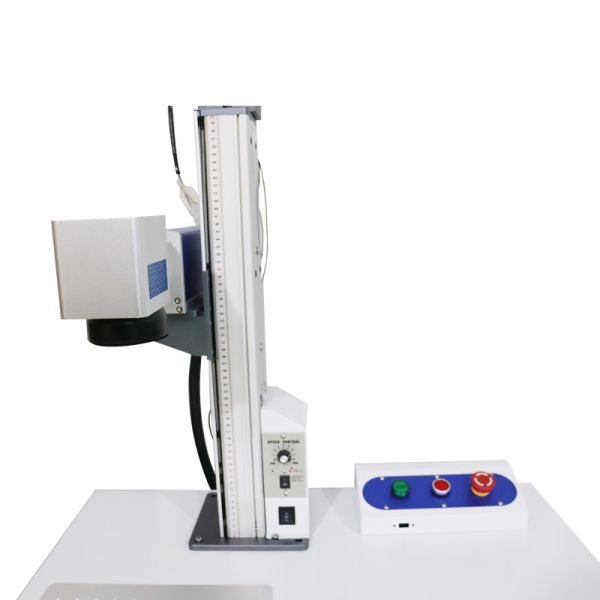

20W 30W Desktop Co2 Fiber Laser Marking Machine Images
